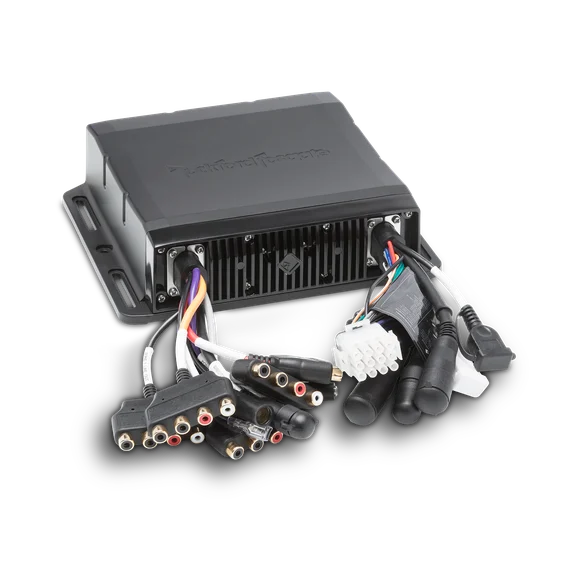

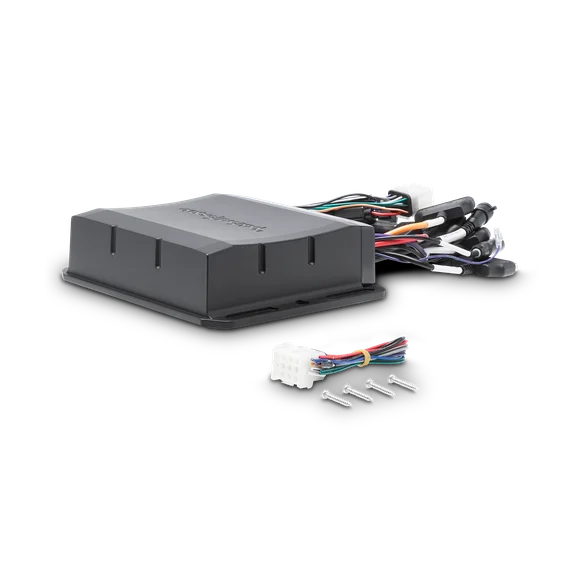

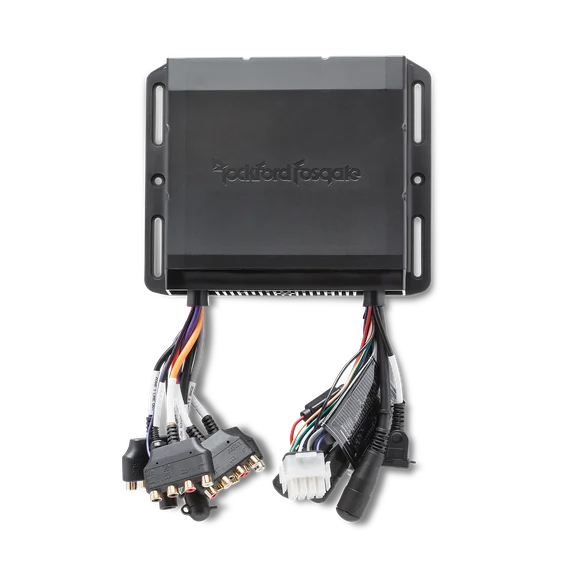

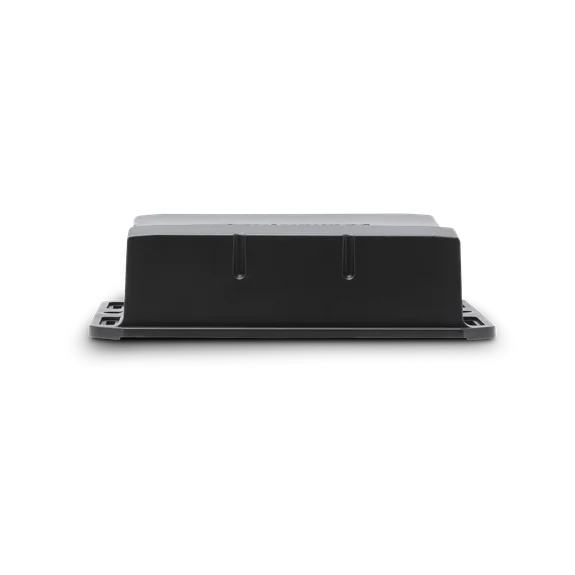

Rockford Fosgate PMX-8BB Punch Marine Hide-Away AM/FM/WB Multi-Zone Digital Media Receiver

The PMX-8BB is a hide-away digital media receiver black box designed for use with the PMX-8DH controller.  Features CANbus functionality for connection to NMEA2K systems using PMX-CAN.

Global AM/FM/WB Tuner, SiriusXM Ready, Full iOS/Android, Made for iPod, Dual USB Input w/ Video Playback, Bluetooth AVRCP 1.5, 2-Source Zone Control, 4-Zone Volume Control, 6 Channel F/R/S 4V Zone 1&2 Pre-outs, 2 Channel Zone 3&4 4V Pre-outs, 7-Band Graphic Equalizer, Punch EQ, A/V Input, Video Output, CAN Ready, EEPROM Non-Volatile Memory,Wired Illumination Control, Steering Wheel Control Ready.  Features CANbus functionality for connection to NMEA2K systems using the PMX-CAN adaptor (see Accessories tab.)

FEATURES AT A GLANCE

• 2-Year Warranty
• CAN-bus (Controller Area Network) compatible. Requires PMX-CAN accessory
• Simple secure pairing bluetooth profile for Android & iOS
• Bluetooth, A2DP only, AVRCP 1.4
• Made for iPhone apple certified
• Licensed Pandora control (apple direct USB or BT/ android via bluetooth)
• Automotive grade AM/FM Radio, Weatherband Radio digital tuner. Supports Radio Data System (RDS) to receive and display broadcast information
• *Antenna not included
• Display album art from connected iPhones on the radios display
• Selectable high pass and low pass crossover points for each independent zone
• Internal power amplifier 4 x 50W 2Ω stable
• 4 sets (Zones) RCA out; 4 active with 4 channels per zone (2 full range + 2 sub) 4V signal output
• Folder browsing via BT connected iPhones
• Selectable crossover slopes of 12dB or 24 dB for each independant zone
• Adjustable input gain for each source
• Dedicated DSP audio processors for each zone with independent 7 Band EQ+Punch EQ
• Integrated voltage gauge w/ low voltage alert
• Wired remote ready (up to 3 remotes)
• EEPROM non-volatile memory stores data if power is removed
• Rear AUX-In: RCA L/R
• External steering wheel remote control interface compatible
• External trigger input to activate reverse camera mode
• Wired illumination control
• Optional CAN-BUS transceiver ready (PMX-CAN)
• Rear USB with 1a charging (supports album art on USB connected iPhones)
• Epoxy coated circuit board
• IPX5 Water Intrusion Rating: Water projected from nozzles from any direction shall have no harmful effects.
• Compatible with a MFD (Multi-Function Display) via NMEA 2000 standard. See MFD Compatibility
• Upgradeable Firmware and Bluetooth Software via USB
