UTV Stereo

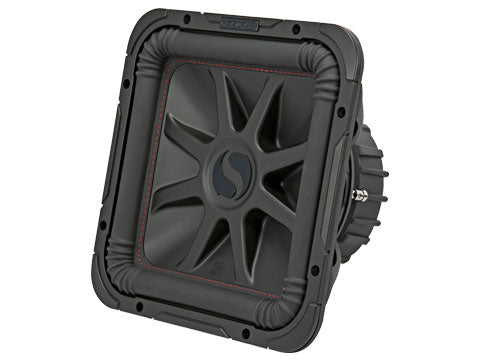

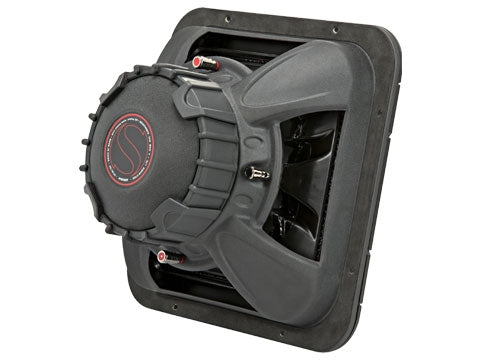

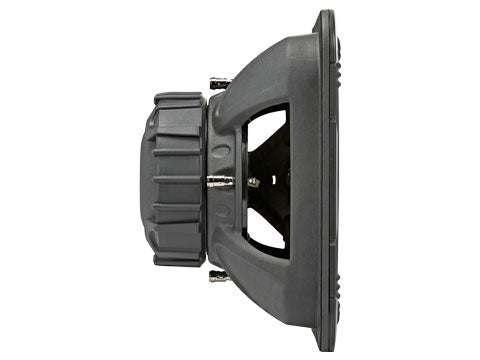

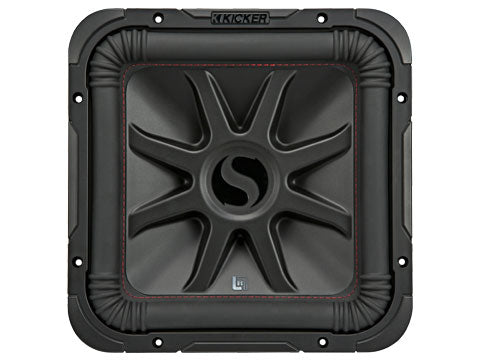

Kicker Audio - 12" Solo-Baric Subwoofer
Kicker Audio - 12" Solo-Baric Subwoofer
Regular price
$299.99 USD
Regular price
Sale price
$299.99 USD
Unit price
/
per
Couldn't load pickup availability
Share
12" Solo-Baric 600 Watt / 1200 Watt Peak Subwoofer
The L7T 12-inch Subwoofer is a true-bass, thin subwoofer with a pair of 2Ω voice coils.
With our custom SoloKon™ technology and the L7T’s unique interior support system, the sub sounds fat – but keeps it thin! Match any L7T thin sub with a CX-Series mono amplifier for an outstanding combination of power and size.
FEATURES:
- Uses a Sealed or Ported Enclosure
- Square Sub Design Moves 20% More Air Than Round Subwoofers
- Easily Mounts Under or Behind a Seat
- Dual Voice Coil Design
- Ribbed Santoprene Surround Resists Heat And Degrading
- Bumped Top Plate For More Excursion & Smoother Performance
- SoloKon™ Cone With 360-Degree Back Bracing
- UniPlate™ Solid Pole Piece & Backplate For Excellent Heat Dissipation
- Durable Steel Basket
*The L7T 12-inch Subwoofer works best with a sealed or ported enclosure and 600 watts of recommended power. See below for more details.
SPECIFICATIONS
| Thiele/Small Parameters |
| 46L7T122 T/S Parameters |
| Product Dimension Sheet |
| 46L7T12 Dimensions |
| Size (IN.,CM) |
| 12, 30 |
| Impedance (OHMS) |
| 2 DVC |
| Recommended Amplifier Power (watts RMS) |
| 600 |
| Peak Power (watts, per ANSI/CTA-2031-A) |
| 1200 |
| Sensitivity (dB 1w/1m) |
| 86.54 |
| Frequency Response (Hz) |
| 25-100 |
| Mounting Depth (IN.,CM) |
| 4-1/8, 9.5 |
| Mounting Cutout, Square (IN.,CM) |
| 11-1/16, 28.1 |
| Min Rec Sealed Box Volume (CU. FT., Liters) |
| .55, 15.6 |
| Max Rec Sealed Box Volume (CU. FT., Liters) |
| 1.25, 35.4 |
| Min Rec Vented Box Volume (CU. Ft., Liters)** |
| 1.75, 49.6 |
| Max Rec Vented Box Volume (CU. Ft., Liters)** |
| 2.25, 63.7 |
| What's in the box? |
| one 12-inch subwoofer, one owner's manual, two stickers |
