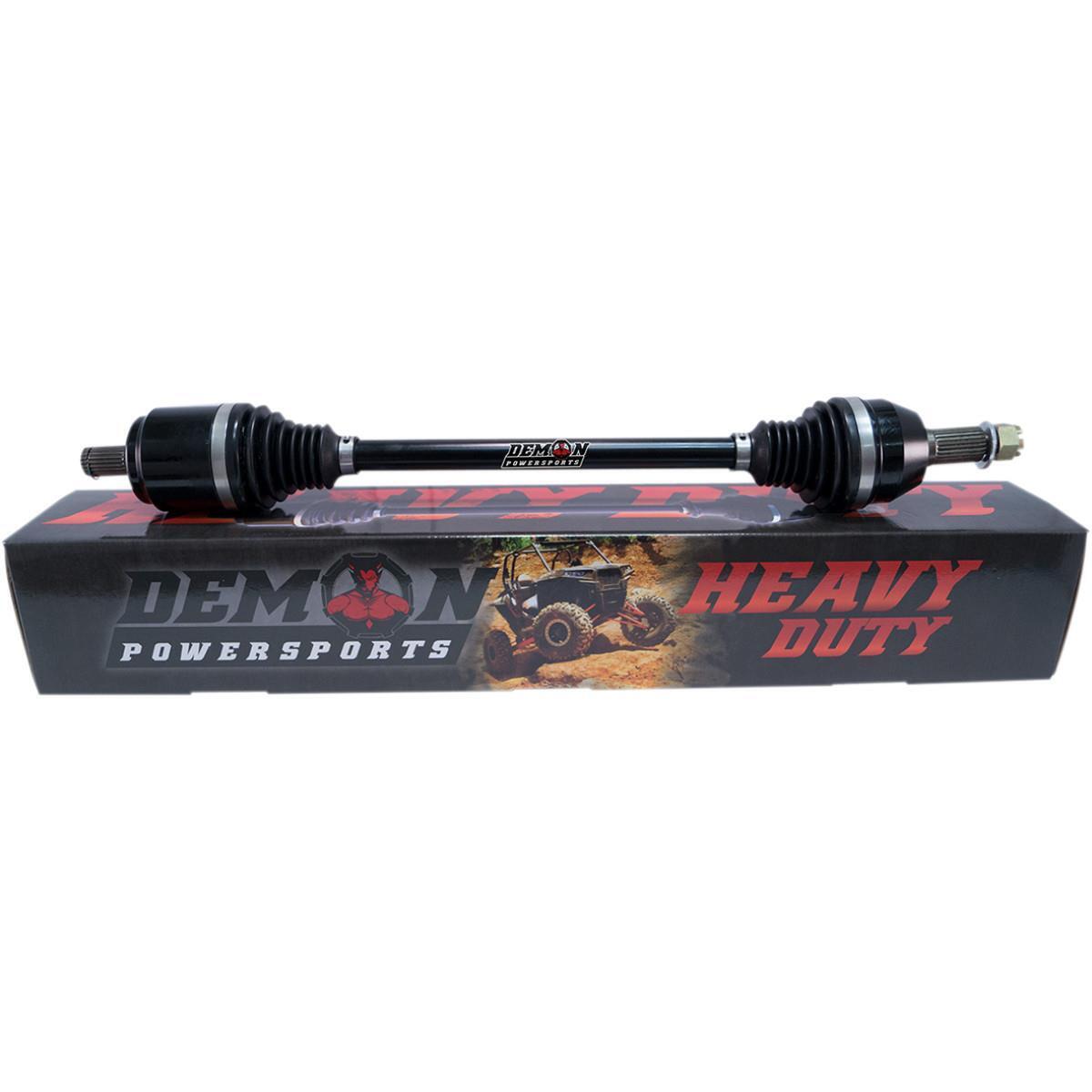

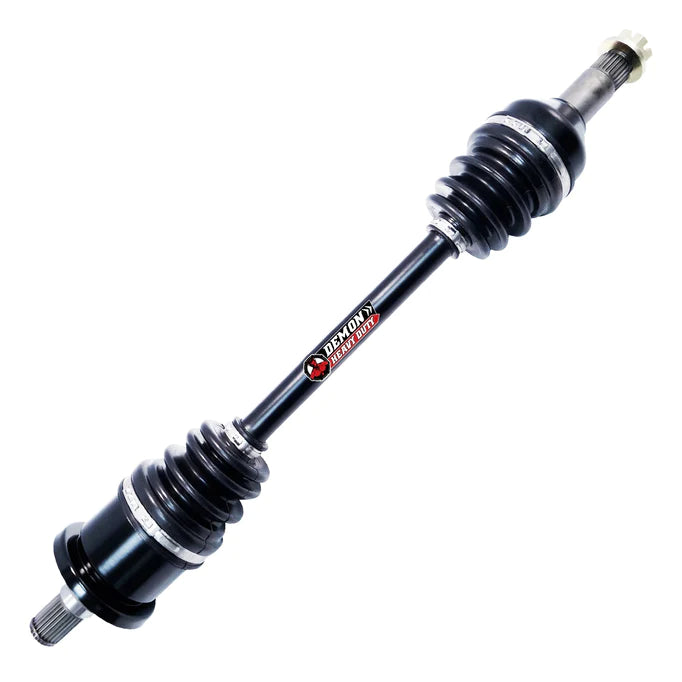

Demon - Can-Am X3 Xmr/Max Extreme Heavy Duty Axles
Demon - Can-Am X3 Xmr/Max Extreme Heavy Duty Axles
Share
DEMON POWERSPORTS
Our Strongest Axles To Date
Our X-Treme Heavy Duty Axles are “Hell Rated” – upgraded from our Heavy Duty Line to handle the harshest terrains for racing in Desert, Sand, Mud, Rock and Short Courses. Demon X-Treme Heavy Duty Axles are our strongest axles to date.
Through years of research and development Demon Powersports has developed a RACE READY, ULTIMATE PERFORMANCE axle that doesn’t burn a hole in your pocket and adheres to the highest quality standards. The success behind our products stems from thorough quality control. Our products go through extensive and extreme testing and R&D before launching.
Entire Axle Made Up of 4340 Chromoly Steel Material (In-and-Out)
These axles are bigger, beefier, and stronger. Demon X-Treme Heavy Duty Axles are built using larger CV joints and shafts, paired with our proprietary dual heat treatment process, and 4340 Chromoly Steel material for all its components including the shaft, housing, cage, race, and balls.
This gives the axles the edge it needs for superior strength and longevity. We re-engineered our cage design to enhance durability and use Molybdenum grease to lubricate the internal components. The axle's inner components are micro-polished, so the CVs don't heat up like other products.
4340 Chromoly steel is more elastic meaning the axle shaft and its components will absorb any stress and keeps it within itself, eliminating any stress from being transferred into the differential and through your drivetrain. This helps preserve other components on the car!
Available for Long Travel Kits
Our X-Treme Heavy Duty is also tailored made to work with all major Long Travel Suspension Kits & Lift Kits. We understand the requirement for the desert and dunes. As provide an out-of-the-box solution since they are already optimized for heat so your CVs can run cooler and last longer. If you don’t believe us talk to any one of our racers in BITD, SCORE, SNORA, DAKHAR etc whom trust and use our products!
Our long travel axles are tailor-made to fit the following suspension kits Cognito Motorsports, Extreme Performance, Fireball Racing HCR, NXS Designs, Madigan Motorsports, SF Raceworks, LSK, Lone Star Racing, Fifty6 Industries, FabWerx, Grounder 4, UTV Wolfpack, Reflex, Long Travel Industries and much more!!
Backed with 2-Years Limited Warranty
Demon Xtreme axles come with an industry-first 2yr limited warranty! We know our axles are built and designed for the baddest and toughest machines, that’s why we have paired our axles with the best warranty in the industry! Our #1 priority here at Demon Powersports is your happiness. Which means we stand behind our products. If you have a problem, we will solve it. Just reach out to our Customer Support Team. We’re here for you. Happiness & Performance are guaranteed.
Trust In Demon X-Treme Heavy Duty Axles To Keep You Riding!!
If you have an axle that is optimized for heat and strength then you can have no fear running more power or larger tires on your machine meaning you can have the baddest and toughest machine out there without worrying about getting left behind in the sand, rocks, trail or mud!!
• Entire Axle made up of 4340 Chromoly Steel
• Re-Engineered Cage Design to Enhance Durability
• 20 – 30% Larger components compare to HD
• Shaft is micro-polished and chrome plated
• All components of axles dual heat-treated to increase strength
• Unique boot design depending on riding terrain for heat reduction
• High-quality lithium-based grease containing molybdenum with a high drop point
• Larger swing angles up to 47 degrees
• Backed with a 2-years limited warranty
• Built for Extreme riders and machines with more power
• Our Strongest Axles To Date
• Available for Long Travel Kits
PAXL-3035XHD
OEM Ref : 705401686 705402097No Smart-Lok 64 inch Wide
Fitment Data:
PAXL-3036XHD
2017 Can-Am Maverick X3 Turbo R Front Left, Front Right
2017 Can-Am Maverick X3 X ds Turbo R Front Left, Front Right
2018 Can-Am Maverick X3 Turbo Front Left, Front Right
2018 Can-Am Maverick X3 Turbo R Front Left, Front Right
2018 Can-Am Maverick X3 X ds Turbo R Front Left, Front Right
2018 Can-Am Maverick X3 Max Turbo Front Left, Front Right
2018 Can-Am Maverick X3 Max Turbo R Front Left, Front Right
2018 Can-Am Maverick X3 Max X ds Turbo R Front Left, Front Right
2021 Can-Am Maverick X3 DS Turbo Front Left, Front Right
2021 Can-Am Maverick X3 DS Turbo R Front Left, Front Right
2021 Can-Am Maverick X3 Max DS Turbo Front Left, Front Right
2021 Can-Am Maverick X3 Max DS Turbo R Front Left, Front Right
Fitment Data:
PAXL-3037XHD
2021-2023 Can-Am Maverick X3 DS Turbo Rear Left,Rear Right
2020-2021 Can-Am Maverick X3 DS Turbo R Rear Left,Rear Right
2022-2023 Can-Am Maverick X3 DS Turbo RR Rear Left,Rear Right
2021-2023 Can-Am Maverick X3 Max DS Turbo Rear Left,Rear Right
2020-2021 Can-Am Maverick X3 Max DS Turbo R Rear Left,Rear Right
2022-2023 Can-Am Maverick X3 Max DS Turbo RR Rear Left,Rear Right
2018-2020 Can-Am Maverick X3 Max Turbo Rear Left,Rear Right
2018-2019 Can-Am Maverick X3 Max Turbo R Rear Left,Rear Right
2018-2019 Can-Am Maverick X3 Max X ds Turbo R Rear Left,Rear Right
2020-2023 Can-Am Maverick X3 Max X ds Turbo RR Rear Left,Rear Right
2018-2020 Can-Am Maverick X3 Turbo Rear Left,Rear Right
2017-2019 Can-Am Maverick X3 Turbo R Rear Left,Rear Right
2017-2019 Can-Am Maverick X3 X ds Turbo R Rear Left,Rear Right
2020-2023 Can-Am Maverick X3 X ds Turbo RR Rear Left,Rear Right
2019-2021 Can-Am Maverick X3 X mr Turbo Rear Left,Rear Right
2022-2023 Can-Am Maverick X3 X mr Turbo RR 64 Rear Left,Rear Right
2022-2023 Can-Am Maverick X3 X rc Turbo RR 64 Rear Left,Rear Right
Fitment Data:
PAXL-3039XHD
2021 Can-Am Maverick X3 RS Turbo R Front Left, Front Right
2021 Can-Am Maverick X3 Max RS Turbo R Front Left, Front Right
Fitment Data:
PAXL-3040XHD
2022-2023 Can-Am Maverick X3 Max RS Turbo RR Rear Left,Rear Right
2022-2023 Can-Am Maverick X3 Max X rs Turbo RR Smart-Shox Rear Left,Rear Right
2022-2023 Can-Am Maverick X3 RS Turbo RR Rear Left,Rear Right
2022-2023 Can-Am Maverick X3 X mr Turbo RR 72 Rear Left,Rear Right
2022-2023 Can-Am Maverick X3 X rc Turbo RR 72 Rear Left,Rear Right
2022-2023 Can-Am Maverick X3 X rs Turbo RR Smart-Shox Rear Left,Rear Right
Fitment Data:
PAXL-3082XHD
2019 Can-Am Maverick X3 Turbo Front Left, Front Right
2019 Can-Am Maverick X3 Turbo R Front Left, Front Right
2019 Can-Am Maverick X3 X ds Turbo R Front Left, Front Right
2019 Can-Am Maverick X3 X mr Turbo Front Left, Front Right
2019 Can-Am Maverick X3 X rc Turbo Front Left, Front Right
2019 Can-Am Maverick X3 Max Turbo Front Left, Front Right
2019 Can-Am Maverick X3 Max Turbo R Front Left, Front Right
2019 Can-Am Maverick X3 Max X ds Turbo R Front Left, Front Right
2020 Can-Am Maverick X3 DS Turbo R Front Left, Front Right
2020 Can-Am Maverick X3 Turbo Front Left, Front Right
2020 Can-Am Maverick X3 X ds Turbo RR Front Left, Front Right
2020 Can-Am Maverick X3 X mr Turbo Front Left, Front Right
2020 Can-Am Maverick X3 X rc Turbo Front Left, Front Right
2020 Can-Am Maverick X3 Max DS Turbo R Front Left, Front Right
2020 Can-Am Maverick X3 Max Turbo Front Left, Front Right
2020 Can-Am Maverick X3 Max X ds Turbo RR Front Left, Front Right
2021 Can-Am Maverick X3 X ds Turbo RR Front Left,Front Right
2021 Can-Am Maverick X3 Max X ds Turbo RR Front Left,Front Right
2022 Can-Am Maverick X3 DS Turbo Front Left,Front Right
2022 Can-Am Maverick X3 DS Turbo RR Front Left,Front Right
2022 Can-Am Maverick X3 Max DS Turbo RR Front Left,Front Right
2022 Can-Am Maverick X3 X ds Turbo RR Front Left,Front Right
2022 Can-Am Maverick X3 X mr Turbo RR 64 Front Left,Front Right
2022 Can-Am Maverick X3 X rc Turbo RR 64 Front Left,Front Right
2022 Can-Am Maverick X3 Max DS Turbo Front Left,Front Right
2022 Can-Am Maverick X3 Max X ds Turbo RR Front Left,Front Right
2023 Can-Am Maverick X3 DS Turbo Front Left,Front Right
2023 Can-Am Maverick X3 DS Turbo RR Front Left,Front Right
2023 Can-Am Maverick X3 Max DS Turbo RR Front Left,Front Right
2023 Can-Am Maverick X3 X ds Turbo RR Front Left,Front Right
2023 Can-Am Maverick X3 X mr Turbo RR 64 Front Left,Front Right
2023 Can-Am Maverick X3 X rc Turbo RR 64 Front Left,Front Right
2023 Can-Am Maverick X3 Max DS Turbo Front Left,Front Right
2023 Can-Am Maverick X3 Max X ds Turbo RR Front Left,Front Right
