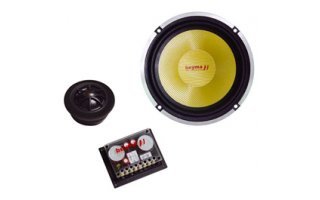

Beyma - SCK65 6.5" 2 Way Component System

Beyma - SCK65 6.5" 2 Way Component System

KEY FEATURES
• Complete car audio system
• RMS 80 Each Side / 160 w maximum Set (Peak: 320 w per set / 160 w each side)
• Extended frequency range (50-20000 Hz)
• Excellent sensitivity (92 dB)
• Glass fibre woofer cone
• Fabric tweeter diaphragm
WOOFER SPECIFICATIONS
Nominal diameter Nominal impedance Power handling / maximum Sensitivity Frequency range Resonant frequency, fs D.C. voice coil resistance, Re Mechanical quality factor, Qms Electrical quality factor, Qes Total quality factor, Qts Equivalent air volume to Cms, Vas Efficiency, ho (%) Effective surface area, Sd Xmax 165 mm. 6.5 in. 4 ohms 80 W RMS / 160 W 90 dB 1w @ 1m 50 - 6000 Hz 56 Hz 3.6 ohms. 2.26 0.98 0.68 13.2 l 0.2 130 cm2 3 mm TWEETER SPECIFICATIONS
Nominal diameter Nominal impedance Power handling / maximum Sensitivity Frequency range 25 mm. 1 in. 4 ohms 20 W RMS / 40 W 92 dB 1w @ 1m 2 - 20 kHz FILTER SPECIFICATIONS Power handling Crossover frequency Attenuation slope CAJA CERRADA 120 W RMS 3.2 kHz 12 dB/oct. MOUNTING INFORMATION Woofer baffle cutout diameter Woofer mounting depth Tweeter baffle cutout diameter Tweeter mounting depth Filter external dimensions 147 mm.  5.79 in. 66 mm. 2.60 in. 46.5 mm. 1.83 in. 20 mm.  0.79 in. 115 x 90 x 39 mm. 4.5 x  3.5 x 1.5 in.
FILTER SPECIFICATIONS
Power handling Crossover frequency Attenuation slope CAJA CERRADA 120 W RMS 3.2 kHz 12 dB/oct.
MOUNTING INFORMATION
Woofer baffle cutout diameter Woofer mounting depth Tweeter baffle cutout diameter Tweeter mounting depth Filter external dimensions 147 mm.  5.79 in. 66 mm. 2.60 in. 46.5 mm. 1.83 in. 20 mm.  0.79 in. 115 x 90 x 39 mm. 4.5 x  3.5 x 1.5 in
