Rockford Fosgate

Rockford Fosgate - M2 10" Color Optix™ Sealed Enclosure Marine Subwoofer

Rockford Fosgate - M2 10" Color Optix™ Sealed Enclosure Marine Subwoofer

Regular price $399.99 USD
Regular price $399.99 USD Sale price $399.99 USD
Sale Sold out
Color
Ohm

10” DVC 2-Ohm Color Optix™ subwoofer that connects with our Rockford Fosgate Color Optix™ controller and RF Connect™ App, allowing you to customize your own color patterns. Connectivity is handled through integrated Deutsch™/Amphenol™ connectors that make wiring simple and error proof. Wiring with the Versa Switch™ allows you to quickly configure the voice coil in series or parallel with flip of switch. This “S” model is optimized for small sealed enclosures where space is at a premium. Includes 2-piece grille with interchangeable colored plastic and stainless-steel insert.

The M2 series of Element Ready™ subwoofers are IP67 certified, making them truly purpose-built for marine and motorsport applications where protection from damaging UV rays and water spray is essential. They are designed to pair with the Rockford Fosgate Color Optix™ controller and RF Connect App through its Deutsch™ and Amphenol™ connectors integrated into the basket. To compliment the plug and play connectivity and streamline installation, M2 subwoofers are equipped with a Versa Switch™ to make changing impedance between 1 and 4 ohms as easy as flipping a switch. Matching the theme of your boat can be further customized by using the included color insert or stainless-steel grille for that sport look.

FEATURES AT A GLANCE

  • Adjust color experience to suit your taste with Rockford Fosgate® Color Optix™ controller (optional)
  • Integrated Deutsch™/Amphenol™ connectors make wiring connections simple and error proof
  • Optimized for small sealed enclosures when there is very little space for an enclosure
  • Element Ready™ design protects against outdoor exposure
  • Industry’s first molded in-frame connectors for simple connectivity in addition to conventional spade terminals
  • VERSA impedance switch quickly allows series or parallel configuration without additional wiring
  • Ultra-bright wide-angle RGB LEDs provide rich, reliable illumination
  • Deutsch™ connector front/rear silicone seal protects against water ingress
  • VAST vertical attach surround technique increases effective radiating cone area up to 25%
  • 100% UV Stable ASA plastic frame & grille design stands up to harsh marine environment
  • IPX6 Marine Grade for prevention of water intrusion
  • Provides superb low and midrange frequency reproduction with smooth high frequency roll-off

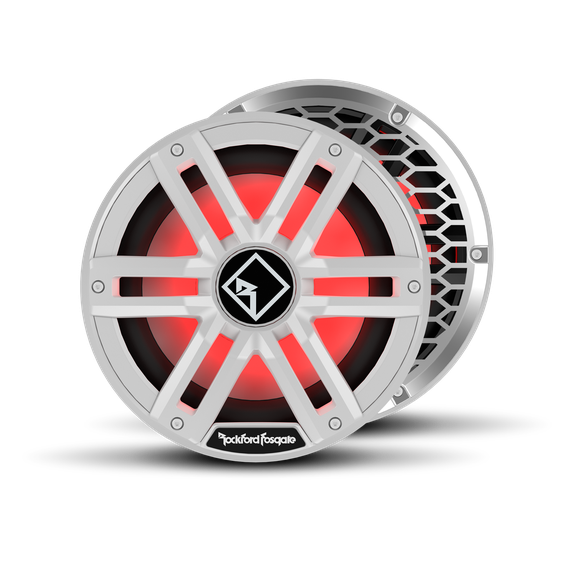

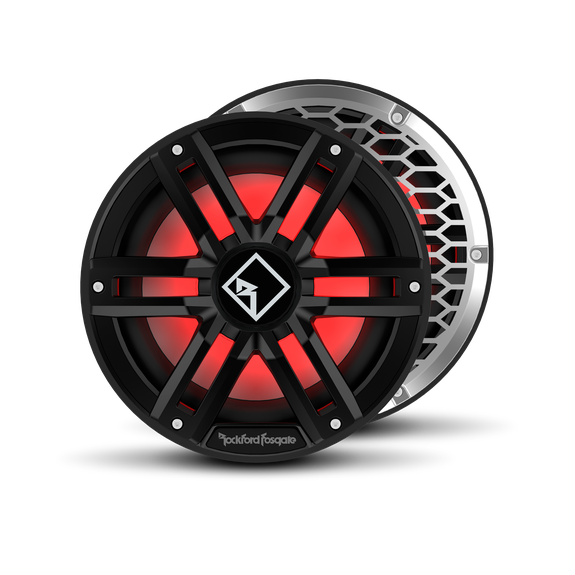

  • 2-piece grille allows for interchangeable stainless-steel or "sport" option
  • Gold plated Marine grade brass terminals provide a corrosion resistant connection
  • Klippel Verified certification program delivers the best possible loudspeakers
  • 2-Year Warranty
  • Injection molded mineral filled polypropylene cone body with UV inhibitors

Power Handling (Watts RMS) 400 Watts
Nominal Impedance (Ohms) 2-Ohm or 8-Ohm Switchable
Size 10"
Voice Coil Type Dual Voice Coil
Voice Coil Diameter 1.95" (49.53 mm)
Magnet Weight (oz) 32.9 oz. (0.9 Kg)
Fs (Hz) 28
Re (Ohms) 6.5
Le (mH) 3.43
Sd (cm2363
Qms 5.18
Qes 1.07
Sealed Box Volume (Vb) 0.5 cu. ft. (14 Liters)
Qts 0.89
Vas 38.2
SPL (dB @ 1w/1m) 86
Xmax (mm) 12.0
Woofer Displacement 0.07 cu. ft. (2.03 Liters)
Speaker Connector Deutsch™ and 1/8" Spade
Cutout Diameter 8.87 in. (225.3 mm)
Mounting Depth 4.24 in. (107.7 mm)
Shipping Weight 8.5 Lbs. (3.85 Kg)
